How to access SAEAUT SNMP OPC Server data through Internet
Previous  Top  Next

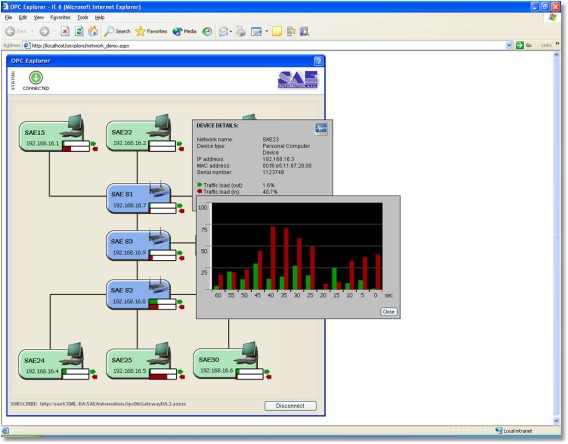

The data from SAEAUT SNMP OPC Server™ is possible very elegant way to acces through Internet. Then, the data may be presented directly in Internet browser (e.g. Internet Explorer). The snapshot of an example application implemented in this way is shown on figure below.

ss_network_resized560x434
Figure: Example of accessing data from SAEAUT SNMP OPC Server via Internet

SAE - Automation, s.r.o. delivers the XmlDaSnmpOpcServerWrapper to make SAEAUT SNMP OPC Server™ available through from Internet. The used wrapper is implemented as Web Service and needs for running the Internet Information Services (IIS) server to be installed on the PC. IIS server is accesible from Control Panel à Administrative Tools à Internet Information Services.

The XmlDaSnmpOpcServerWrapper is possible to install during SAEAUT SNMP OPC Server™ installation as optional item. In addition, that wrapper installation package is located in the application directoty ..\SAEAUT SNMP OPC Server\XML-DA Wrapper Setup\ and may be installed also additionally.

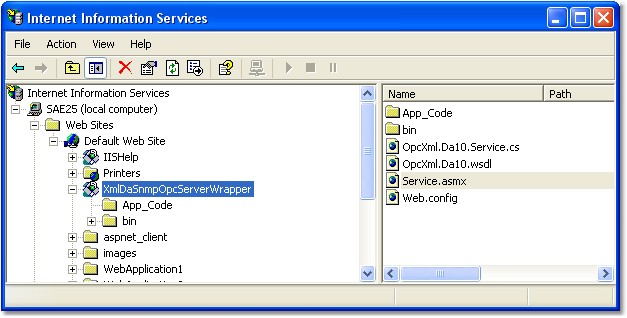

iis_webservices
Figure: Internet Information Services
