With this command you can add the new device to the project. When in the tree view control of the configurator (on the left panel), the folder Address space is highlighted, you can choose from the menu Edit à New à Device (or the shortcut key Ctrl+D) or you can click with the right mouse button on this folder and from the pop-up menu choose the command New à Device (or the shortcut key Ctrl+D).

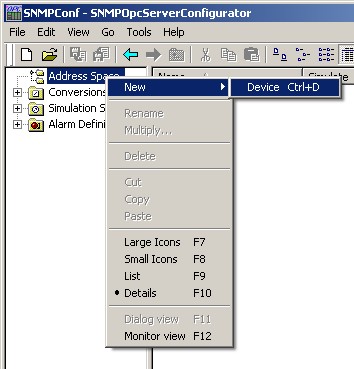

Figure: Opening of Device dialog view

After that device dialog view will be opened.



---
