File menu
Previous  Top  Next

In this menu you can create new project, load a stored project or save the current project. You can also display the connection properties of the opened project, make some XML export, import and validation. Here is also a command to make current project active.
Also contains list of the last opened projects and command for closing the configurator application.

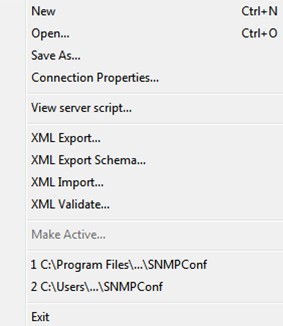

clip0138
Figure: Menu File

Here is short description of each command:

·Command New - creates a new SNMP OPC Server project (configuration mdb file)
·Command Open - opens existing stored SNMP OPC Server project
·Connection properties - information about active configuration file as well as used database driver
·View server script - shows all used JScript function used within a configuration with syntax highlight
·Command Save as - saves the current opened SNMP OPC project with defined name
·Command Connection properties - displays the connection properties of the opened project
·Command Make Active - activates the current opened project
·Command Exit - closes the configurator application
