| · | Workspace settings
|
| · | Monitor view settings
|
and for SNMP OPC Server Runtime in sections:
| · | Log the SAEAUT SNMP OPC Server activity
|
| · | OPC Server settings
|

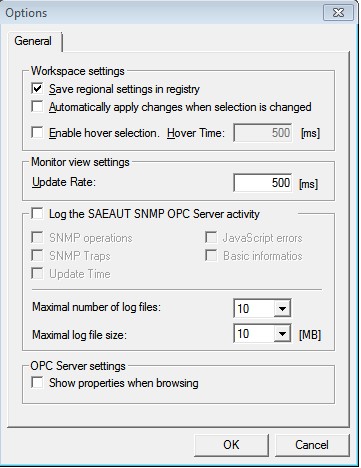

Figure: Dialog box Options
Workspace settings
|
|
| Save regional settings in registry
|
| enables/disables the configurator to save active language chosen from the Select Language dialog into registry and set it up during initialization (not used in this version)
|
| Automatically apply changes when selection is changed.
|
| If checked, the configurator itself tries to update the edited data without requiring to click on Apply button, and displaying the confirmation dialog.
|
| Enable hover selection, Hover time
|
| all configurator support automatic selection of the item above which the mouse is hovering. Enter Hover time parameter in milliseconds.
|
|
|
| Update rate
|
| specifies the update frequency of Monitor View items.
|
|
|
| If not checked then by start of the OPC Server runtime only head with system information is written to log file
|
| If checked then all information generated in the regime LOG_ALWAYS is written to the log file
|
|
|
| SNMP Operations
|
| Results of all GET and SET SNMP Operations
|
| SNMP TRAPs
|
| Errors by SNMP Traps receiving
|
| Update Time
|
| Time for scanning of every connected device
|
| Java Script errors
|
| Errors by processing of JScript functions
|
| Basic information
|
| Associating of OIDs to OPC items required by an OPC client
|
|
|
| Maximal number of log files
|
| Maximal number of log files that creates SNMP OPC server in the log directory.
|
|
|
| Maximal log file size [MB]
|
| When the OPC server runtime is started and running, information is added to an log file till it has defined max. size. After that, the new file is created (in case that less than maximal number of files is in the log file directory).
|
OPC Server settings
| Show properties when browsing
|
| if checked OPC clients will be able browse not only OPC items but also their properties in the address space of the OPC server.
|
