The SNMP OPC Server can define 5 categories of the items. All are stored in the Item list control. The following picture shows this control.

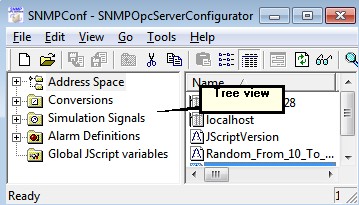

Figure: SAEAUT SNMP OPC Server configurator - tree view

There are following items:

1.

Address Space - contains Devices and the Data items related to MIB variables from managed devices or round trip time of the ICMP ping for unmanaged devices. The data items can be organized in a folder structure.

2.

Conversions - SNMP OPC server allows you to create some conversion functions for reading / writing the values from / to SNMP Agents

3.

Simulation Signals - you can set simulations signal that can be offered to OPC client applications instead of values from devices up.

4.

Alarm Definition - defines alarms for SNMP OPC Server

5.

Global JScript variables - defines global JScript variables



---
