They can be defined as scalar variables or as arrays. Please see example of working with global JScript variables.

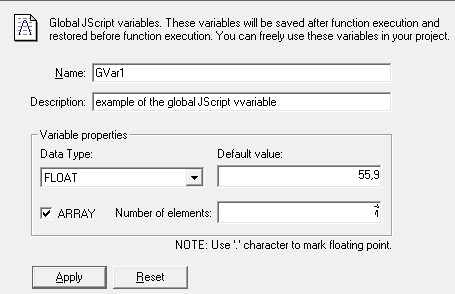

Figure: Dialog view to define a global JScript variable.
Name
arbitrary within address space unique name of the OPC Item that does not contain spaces. It can be edited by hand, imported on line from device or off line from MIB file of a device (the characters like *, ., /, -, :, _, ;, " are not allowed).
|
Description
Informative string to explain global variable
|
|
Data Type
|
Following data types for a variable can be chosen from list box: BOOL, DOUBLE, FLOAT, LONG, STRING, ULONG
|
|
Default value
|
Default value of the scalar variable or all values in array
|
|
ARRAY
|
If checked in array of global variable will be created instead of scalar variable
|
|
Number of elements
|
Number of elements in array of global variables.
|
