Dialog view

There is a dialog view for every item in tree view as well as for items that can be chosen from navigation menu. They will be described in next chapters.

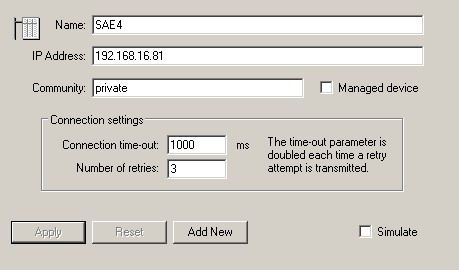

For example, the dialog view to define parameters for devices is in the figure bellow.

dialog_view

Figure: Dialog view used to define parameters for devices.

All dialog views of the address space contain the same buttons:

Apply

Values written in the view will be saved to the configuration.

Reset

Values written in the view will be replaced by original values from configuration or by default values.

Add New

New item of the same type will be created and filled by default values that can by edited

Some dialog views contain check box Simulate. When checked in, instead of values from devices, within OPC items in given folder, values of simulation signals (if defined for the OPC item.) will be published.
